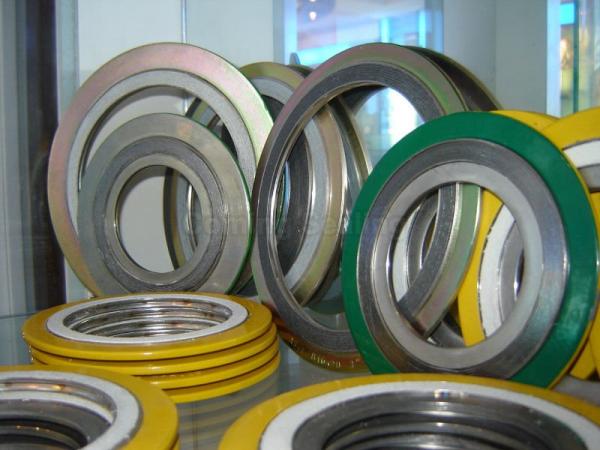

Spiral wound gaskets are special semi-metallic gaskets of great strength and resilience, therefore they are suitable for use under heavy operating conditions.
Spiral wound gaskets are manufactured by spiral winding V-shaped metal strip and strip of non-metallic filler material. Spiral wound gaskets can be reinforced with an outer centering ring and/or inner retaining ring.
Spiral wound gaskets can be used for sealing flange joints, manhole and handhole covers, tube covers, boilers, heat exchangers, pressure vessels, pumps, compressors and valves.
TYPE A without outer and inner ring
TYPE B only with inner ring
TYPE C only with outer ring
TYPE D with outer and inner ring
Metallic strip material 0.2mm thickness:
SS304, SS316L, SS347, Monel, Alloy 600, Hastlloy C276, Ti grade 2, Ti grade 7;
other material on request.
Filler strip material 0.5-0.6mm thickness: Flexible graphite, PTFE, Asbestos, Non-asbestos.
Outer ring and inner ring material:
CS, SS304, SS316L, SS347, Monel, Alloy 600, Hastlloy C276, Ti grade 2, Ti grade 7,
other material on request.
Dimensions standard: ASME, BS, DIN, JIS standard,
and other size as per clients' request.
